Can a lifepo4 battery 24v 100ah Replace Lead‑Acid Batteries?
Yes, a 24-volt, 100-amp-hour lithium iron phosphate battery can be used instead of a lead-acid battery in most business and industry settings. A 24-volt, 100-amp-hour lithium iron phosphate battery can be used instead of a lead-acid battery in most business and industry settings. Even though it costs more at first, the technology has a lower total cost of ownership, a longer cycle life, and the ability to discharge deeper. It also charges faster. When the right system compatibility checks are done and the right charging equipment is used, the switch leads to measurable improvements in how well things work and less downtime for repair. TOPAK's LiFePO₄ battery 24V 100 Ah is an example of this new technology. It has a safety feature built into the battery management system and can be charged and drained 6,000 times at 80% depth of discharge.
Understanding LiFePO₄ Battery 24V 100Ah Technology
Lithium iron phosphate batteries are a big step forward in the scientific way that we store power. The anode is made of graphite, and the cathode is made of lithium iron phosphate. During charge and discharge cycles, a liquid helps the ions move. It takes 3.2V per cell for this kind of science to work. Eight cells must be linked in series to make a 25.6V system that works like a 24V system.
Core Technical Specifications

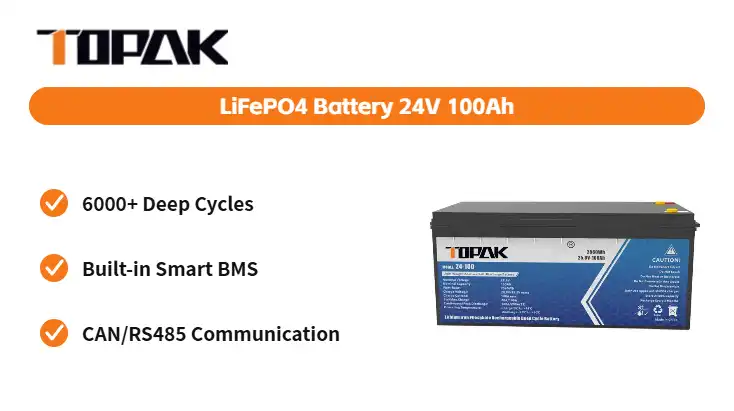

This type of TOPAK LiFePO4 battery 24V 100Ah weighs about 23 kg and gives you 2560 Wh of useful energy. They have a lot more energy packed into a small space than regular lead-acid batteries. It's 522 mm long, 240 mm wide, and 218 mm tall. It doesn't take up as much space as other lead-acid banks of the same type. A built-in battery management system checks the voltage, current, temperature, and balance of each cell. It also protects against overcharging, overdischarging, short circuits, and changes in temperature. It can discharge up to 100 amps continuously, which makes it perfect for heavy-duty applications like AGV systems, industrial robots, and telecom backup systems.
Operational Principles and Chemistry Differences
In lithium iron phosphate batteries, lithium ions move between the electrodes instead of sulfuric acid combining with the lead plates as it does in lead-acid batteries. This method addresses the sulfation issues associated with lead-acid technology. When lead-acid technology is used over and over, partial discharge cycles create solid layers that lower the capacity. When it comes to heat resistance, iron phosphate is much better than other lithium chemicals because its crystal structure stays the same. This property makes the temperature ranges that can be used bigger while also lowering the risk of fire. Because it lacks cobalt, it poses less risk of supply chain issues and is more environmentally friendly.
Maintenance Requirements Comparison
In lead-acid batteries, check the water level every so often, clean the connections, charge them all the way to the same level, and test their specific gravity. These repairs take time and make it possible for undesirable things to happen. With lithium iron phosphate technology, you don't need any of these things. Electrolytes don't leak out because the design is sealed, and the management system keeps the cells in balance automatically. When workers compare the battery to flooded lead-acid systems, they only need to watch the state of charge signs and follow the charging instructions. More than 80% less upkeep work needs to be done.
Iron phosphate chemistry is stable electrically, so it lets cells discharge more deeply without any damage to their structure. When lead-acid batteries are less than 50% charged, they break down more quickly. But lithium iron phosphate units can be drained to 20% without losing any of their long-term benefits. This function effectively doubles the usable power from a specific grade of capability. This means the same amount of power can be stored in smaller battery banks.
Comparing LiFePO₄ 24V 100Ah vs. Lead-Acid Batteries: Performance and Cost
You can tell these two methods are not the same by putting them next to each other. The review needs to look at both short-term wants and long-term economic factors to obtain a good idea of whether something can be done without.
Cycle Life and Depth of Discharge
The TOPAK LiFePO₄ battery 24V 100Ah, can be charged and used 6000 times at 80% depth of discharge. With the same settings, lead-acid batteries can be used 300 to 500 times at 50% depth of discharge. The cycle life has increased by more than ten times. The benefit becomes even clearer when we observe the significant amount of useful space saved with each turn. A 100Ah lead-acid battery provides 50Ah of useful energy each time it discharges to 50%. Around 80% of the way down, the same lithium iron phosphate unit gives off 80Ah. This means that lead-acid batteries can only be used 15,000 to 25,000 times, while lithium iron phosphate batteries can be used 480,000 times.
When the cycle life is longer, parts don't need to be changed as often, and processes can keep running easily. In factories that drain the cells three times a day, lead-acid batteries need to be changed every three to six months. The lithium iron phosphate battery could last over five years in the same places. This cut in the number of repairs lowers the cost of buying new parts, cuts down on downtime, and makes the system more stable.
Efficiency and Energy Losses
What is round-trip efficiency? It measures the energy returned during release compared to the energy added during filling. Round-trip performance for lithium iron phosphate batteries is between 95% and 98%. For lead-acid batteries, it's usually between 70% and 85%. Lead-acid systems lose about 15% to 25% of their energy as heat and chemical exchange. This speed gap means a big running cost for places that get a lot of their power from batteries. When you run 2560Wh of lead-acid batteries every day, you lose 384–768Wh. But when you use lithium iron phosphate technology, you only lose 51–128Wh. This difference can cause lead-acid systems to use 12 to 234 kWh more electricity each year.
The time it takes to charge changes when the economy mode is used. If the charger can handle it, the 25.6V 100Ah unit can be charged faster without getting too hot. This means that it can be fully charged in two to four hours. They need between 8 and 12 hours to fully charge because they have a slow acceptance rate and need to go through absorption and float steps. Being able to charge fast is helpful when charging times are limited or when the battery needs to be charged more than once a day.
Total Cost of Ownership Analysis
The price you pay for a battery system at first is only one part of its overall cost. LFP batteries cost $800 to $1200 for 24V 100Ah. Ah, of power, while lead-acid batteries cost $150 to $300. On the other hand, a lifecycle study gives a different picture of the business.
How to figure out how much a machine that runs every day will cost in ten years: Lead-acid systems would need to have their batteries changed about six to eight times, which would cost around $200 each. This would bring in an extra $1,200 to $1,600 in battery sales. Adding the $50 to $100 per swap for fitting work for each replacement brings the total cost up to $800. Each round costs $0.12 per kWh, which adds up to $547–1024 in extra power costs over 3650 rounds. It costs $40 an hour to do maintenance work that takes about an hour a month, which adds $4800. Over ten years, the lead-acid method costs $6,848,722.
You only have to buy the lithium iron phosphate battery one time, which costs between $800 and $1200. It doesn't need much maintenance ($200 for a monthly check), and it saves energy, which costs between $228 and $511 a year in extra power costs. Between $1228 and $19112 over ten years, which is 75 to 85% less than what lead-acid technology costs.
Safety and Environmental Considerations
Lithium iron phosphate batteries are more stable at high temperatures than lithium batteries that use cobalt. The iron-phosphate link stays strong even when it's being abused, which stops heat from running out of control. When the TOPAK battery is approved by UN 38.3, it means that it meets international truck safety standards. The lead and sulfuric acid in lead-acid batteries are hazardous to you and the world. They are also difficult to get rid of. Since the lithium iron phosphate is sealed, there is no chance of acid spills, and it is easy to recycle when it's time to go.
Many new rules are making it harder to get rid of and deal with lead-acid batteries. Facilities have to keep track of, store, and move used lead-acid batteries as dangerous trash, which costs money for paperwork and following the rules. Batteries made of lithium iron phosphate are not usually thought of as risky. This approach makes it easy to dispose of them and for the government to do its job. It is even better for the earth because it doesn't contain cobalt. The advantage is that it doesn't have the social issues and supply issues that come with digging for cobalt.
Advantages of LiFePO₄ Batteries for Solar and Industrial Applications
Because of how it works, lithium iron phosphate technology can be used in both clean energy systems and hard work environments. When hiring teams know about these application-specific benefits, they can decide if a replacement is a viable idea.
Solar Energy Storage Applications
There are different ways to charge solar systems based on the season and weather. Lithium iron phosphate batteries can easily be charged from a low level all the way up to full charge. This means that they can use energy from the sun no matter what level they are at. A lead-acid battery is much less likely to accept charges when it is more than 80% charged. This means that solar power is often not used when it's most needed.
Some batteries can only hold a certain amount of power, but solar systems can fully drain them without hurting the batteries. It takes 80% of the energy in a LiFePO₄ battery 24V 100 Ah to make 2048 Wh of useful energy. A lead-acid bank of the same size only gives 1280Wh at 50% of its capacity. Smaller lithium iron phosphate systems can still store the same amount of energy because of this difference. The setup is now smaller and easier to do.
Very cold or very hot weather, especially in deserts or icy places, can damage solar systems. The TOPAK battery keeps its charge and power even when lead-acid batteries don't work well at all. It works well in a wide range of temperatures. When safe limits are passed, built-in temperature tracking stops action. This keeps damage from happening and increases availability.
Industrial Equipment and Mobile Applications
Lithium iron phosphate technology is very useful for cars, AGVs, and storage robots that move things around. The 23 kilograms of the 25.6V 100Ah unit is about half the weight of lead-acid batteries of the same size. The vehicle uses less gas, has a longer range, and can move more because it is lighter. Because it's small, fixing spots can be changed, which makes the car look better and evens out the weight.
When teams can charge quickly, they can change how they do their work. For old-fashioned lead-acid truck batteries to keep working, there needs to be a room with charge stations and extra batteries. Because lithium iron phosphate batteries can be charged during breaks and job changes, you don't have to switch cells and don't need as many extras. It is possible for a center with three shifts to use only one set of batteries instead of three sets for each car. This will save a lot of money on capital costs.
It is safe for lithium iron phosphate cells to be used in ships because they can handle shocks. Boats and other watercraft are always moving and shaking, which can damage lead-acid plates and let electrolytes leak. It is not possible for lithium iron phosphate cells to fail in these ways because they are solid-state. Installers have more choices when working on boats where space is limited because they can put batteries in any direction.
Telecommunications and Backup Power Systems
When the main power goes out, telecom devices need strong backup power to keep running. It takes longer for lithium iron phosphate batteries to die, so you don't have to change them as often. The cost of maintenance goes down, and uptime goes up. The service life of 8–15 years is longer than the lead-acid battery repair cycles of 2–4 years. This is especially useful in hard-to-reach places.
High discharge power can handle peak loads when the generator is turned on. The TOPAK battery puts out 100 amps of power all the time. That's 2560 watts of power that can power cooling systems, communication systems, and other things. All through the discharge cycle, the voltage stays the same because of the flat discharge slope. Making this change makes sure that the gear keeps running until the battery is completely dead.
LFP technology is being used by more and more data centers and important facilities for uninterruptible power supply devices. Because of the space economy, more power can be put in places that are hard to build. There's no need for air because hydrogen gas doesn't form while the battery is charged. This makes it easy to put together and cuts the cost of the building system.
Selecting and Procuring LiFePO4 Battery (24V, 100Ah) for Your Business Needs
To successfully change a battery, you need to think about the needs of the application, the skills of the vendor, and the system for long-term assistance. To lower risk and get better results, business-to-business purchase teams should follow an organized method when they buy lithium iron phosphate batteries.
Capacity and System Requirements Assessment
To find out what size battery you need, you must first do a right load study. To find out how many watt-hours are used during normal discharge cycles, you need to add up the losses in power and efficiency. When fully charged, a 2560Wh 25.6V 100Ah machine can handle 256 watts for ten hours, 512 watts for five hours, or 2560 watts for one hour. To reach 80% of the largest depth of discharge in real life, you need to drop these numbers by the same amount.
Give some thought to the flow rate needs. The TOPAK battery can always provide 100 amps, but if you need a high current discharge for a long time, you might need a parallel design. It is possible to raise the power while keeping the voltage the same by connecting several 100Ah units in a row. Three batteries give you 300 amps at 25.6 volts, and two batteries next to each other give you 200 amps. The number of amps goes up in a straight line as the application wants them to.
It's very important to make sure that it works with charge stations. Chargers for LiFePO4 batteries (24V 100) Ah, units need to be designed to work with their power and charge rate. Lead-acid chargers don't always know how to charge lithium iron phosphate batteries properly. They could even damage the battery management system or make the battery last less long. Keep some money away to buy the right charging gear while the old lead-acid technology is being changed. Check to see if the charger works with the new technology.
Vendor Evaluation and Quality Indicators
There is a good chance that a manufacturer who has been around for a while will stand behind the quality of their products and offer long-term support. TOPAK New Energy Technology has been around since 2007 and is stable and knows what it's doing for important business uses. The company can make many things and take on many tasks thanks to its 25,000-square-meter plant in Shenzhen.
Take a close look at the certification papers. The CE mark indicates that the product complies with European safety standards, while the UN38.3 mark confirms its safety for transportation. You can find safety tips and information on what to do in an emergency on the MSDS papers. The fact that a lot of money was spent on tests and the maker has these licenses shows that they care about quality standards.
Advanced makers are different from assembly operations because they make their own battery management systems. TOPAK builds its own management system, which gives it more control over safety features, the freedom to make changes, and the ability to keep systems working together over time. Users of management tools from outside the company may not be able to get as much help or meet the needs of their unique applications when they use these tools.
When you use automated production methods, the quality and reliability of delivery change over time. A lot of automatic production lines make things go faster, cut down on mistakes made by people, and fit cells better. When you buy something this way, you can be sure of both regular quality for long-term purchases and quick delivery for urgent needs.
Warranty, Support, and Customization Options
Most manufacturers of industrial lithium iron phosphate batteries offer warranties that last between three and five years. However, some manufacturers offer longer warranties for certain uses. Find out about the warranty's terms and conditions, such as the maximum depth of discharge, the temperature range it can work in, and the maximum number of cycles it can go through. At the end of the warranty term, most say that 20% is the maximum that can be lost.
This is very important for both setting up the device and using it for a long time. Through application engineering, suppliers should help with designing the system, figuring out how to charge it, and setting up the system for managing batteries. It's easier to connect new tools to old ones when you have access to technical documents like electrical specs, dimensional models, and ways to communicate.
Customization lets you make things work best for certain purposes. TOPAK can make one-of-a-kind battery packs that have adjustable voltages, sizes, mechanical designs, and management system features. Industrial equipment makers should work with suppliers who can change the designs when they need non-standard battery setups. Instead of forcing applications to work with standard goods, they should work with suppliers who can change the designs.
Global marketing networks change delivery times and the number of people who can help you locally. If a company sells its goods in 15 or more countries, it has good shipping systems and has worked with people from other countries before. Through regional agreements, you can get things that are made close to you, which cuts down on wait times and makes it simple to get guaranteed service. When picking long-term partners, you should think about how present your sellers are in the places where you do business.
Case Studies: Successful Replacements of Lead-Acid Batteries with LiFePO4 24V 100Ah
Execution cases from real life can teach us a lot about how replacement projects go. You can figure out the benefits of these case studies in a lot of different companies and situations.
Telecommunications Infrastructure Modernization
They got rid of their old lead-acid battery backup systems and replaced them with lithium-iron-phosphate technology. The company runs 200 remote cell tower sites in the area. It used to have four 100Ah lead-acid batteries at each spot. Because of weather and cycle stress, they needed to be changed every 24 to 30 months. It costs more than $80,000 a year to replace the batteries, and the spot had to be visited for maintenance and fixes in case of an emergency.
It took somewhat less energy to switch to two LiFePO₄ battery 24V 100Ah units per site, but the useful energy went up because the batteries could be drained more fully. In the first year, the change was made to 50 spots and cost $60,000. Instead of the 75 lead-acid batteries that would have died under the old method, these cells had not been changed at all after three years of use. Maintenance calls went down by 65%, which saved the company about $90,000 in labor costs over three years. Service interruptions happened less often because the network was more reliable. This made users happier and improved measures of network performance.
The battery control devices could work in temperatures from -15°C to 50°C, according to data that tracked their temperatures. During this temperature range, the lithium iron phosphate batteries kept their ability to charge and store power. The lead-acid batteries that were there before, on the other hand, began to lose a lot of power above 35°C. The battery life went from 18 months to over 36 months of steady use at places in dry areas, which is a big jump.
Solar Energy Storage Optimization
An office building with 500 people uses an industrial solar system that moved from lead-acid chemistry to lithium iron phosphate chemistry to store energy. Eighteen 200Ah lead-acid batteries were in the first version. At 50% depth of discharge, they could store about 19 kWh of clean energy. The 12-square-meter lead-acid bank had to be fixed every month and took up a lot of room in the machinery room. This meant cleaning the connections and checking the specific gravity.
Engineers did a study and found that at 80% depth of discharge, eight 25.6V 100Ah lithium iron phosphate units would provide 16.4 kWh of useful energy. This would work for the machine and make the software smaller at the same time. There was more room for tools because the new battery bank took up 4.5 square meters. The system's weight went down from 920 kg to 184 kg, so there was no longer any concern about how to hold it.
Over the course of 18 months, tracking performance showed that charging worked better. Because they could take on more charges, lithium iron phosphate batteries were able to store an extra 15 to 20 percent of the energy from the sun when production was high. This increased energy capture cut the amount of power bought from the grid every month by 280 kWh, which saved the company about $400 a year. If repairs weren't done every month, the people in charge of the building would save 16 hours of work a year.
While the system was being tracked, its capacity didn't change at all. This was in contrast to the old lead-acid system, which lost 8–12% of its capacity every year. The site manager thinks that the lead-acid method will only last 3–4 years, while the lithium iron phosphate method will last 8–10 years. This backs up the study of lifetime costs that showed the bigger investment at the start was worth it.
Material Handling Fleet Electrification
People who worked in a building that was open 24 hours a day changed the batteries in twenty trucks from lead acid to lithium iron phosphate. For the old way to work, each forklift needed three sets of batteries, for a total of sixty batteries. The batteries had to be handled and charged with special tools. There were 150 square meters of space for the batteries, and it took two full-time workers to keep track of when to charge and swap cells.
One 25.6V 100Ah battery was put in each truck by the lithium iron phosphate switch. Each battery can be charged whenever it's convenient for the driver. Workers could charge their phones during breaks and shift changes because there were charging stations all over the building. This meant that batteries didn't have to be switched out. People put things in the battery room instead, which freed up valuable space in the building. The two people who worked in the battery room were given more useful transportation work to do.
Over the course of a year, operational statistics showed that output was rising. Every forklift saved about 15 minutes per shift because they didn't have to change batteries. That's 180 hours of work per day for the whole fleet. By cutting down on time, more things could be moved without having to hire more people. Because battery swap delays and breakdowns caused by batteries stopped happening, the forklift was up and running 8% more of the time.
Energy consumption analysis revealed a 22% reduction in electricity costs despite identical operational patterns. It directly reduced the need for power in buildings by making charging more efficient and lowering the amount of energy that was lost. The batteries paid for themselves in just 14 months, which is a lot less time than the 30 months that were planned when the project was first thought of. This is because they use less energy, are more efficient, and require less work.
Conclusion
In many business settings, switching from lead-acid batteries to lithium iron phosphate batteries is both useful and cost-effective. The LiFePO₄ battery 24V 100Ah configuration lasts longer, can hold more power, charges faster, and needs less maintenance than standard lead-acid choices. This technology works really well for uses that need to store solar energy, power phones when they're not plugged in, or move things around. The system needs to be stable, efficient, and have low total costs in all of these areas. Making sure that changes go easily and get the best results means paying close attention to how well systems work together, picking the right provider, and meeting the needs of the applications. Lithium iron phosphate technology is the best choice for sites that want to update their energy storage systems. This is clear from many years of use and case studies.
FAQ
How long does a LiFePO4 battery last compared to a lead-acid?
Based on how it is used, the TOPAK LiFePO4 battery 24V 100Ah unit can be charged and drained 6,000 times at 80% depth of discharge. This means that it can be used for 8 to 15 years. With normal use, lead-acid batteries can be charged and drained 300 to 500 times. They normally last between 2 and 4 years. It's better to use a lithium iron phosphate battery because its electricity stays stable and doesn't break down as lead-acid batteries do through sulfation and plate degradation.
Can I use my existing lead-acid charger with lithium iron phosphate batteries?
When lithium iron phosphate is used, standard charges that use lead acid don't work. Because of how lead-acids work with electricity and voltage, their charge curves have bulk, absorption, and float steps. For lithium iron phosphate batteries to be charged, the current and voltage must stay the same, and the voltage must be set at certain places before the charging stops. If you charge your battery with the wrong tools, you could harm the system that controls the battery, shorten its life, or even put people in danger. It is best to buy charging gear that is designed to work with lithium iron phosphate batteries.
What safety features should I look for in a 24V lithium battery?
Safety is very important when it comes to integrated battery control methods. When the TOPAK unit is charged too quickly, the cells can get damaged. It also has over-current protection to keep discharge rates from going too high, short-circuit protection to keep damage from happening when wiring goes wrong, and temperature monitoring to stop operation if temperatures get too high or too low. Features of cell balance keep the flow of charges even across cells, which stops damage in some places. Certification papers that include UN38.3 prove that safety tests were done by outside parties and that the rules were followed.
Partner with TOPAK for Advanced LiFePO₄ Battery Solutions
That company, TOPAK New Energy Technology, has been making good batteries for 17 years and now makes industrial-grade lithium iron phosphate battery packs. Our LiFePO₄ battery, 24V 100Ah, can hold 2560Wh of energy and has built-in safety features that let it last for 6000 cycles. It's small and light, and it works well for industrial tools, solar storage, and backup power. If you're a business that wants to buy industrial batteries, we can help you with technical support, bulk discounts, and unique solutions. We make battery management systems in-house and use automatic production to make sure that the standard is always the same. We also ship quickly to more than 15 countries around the world. For more information on how to get what you need for your next project, please email B2B@topakpower.com and let us know about your energy storage needs. Get the TOPAK difference with battery choices that are made to last in harsh work environments.
