Are 51.2V 100Ah Vertical Batteries Easier to Service Than Horizontal?

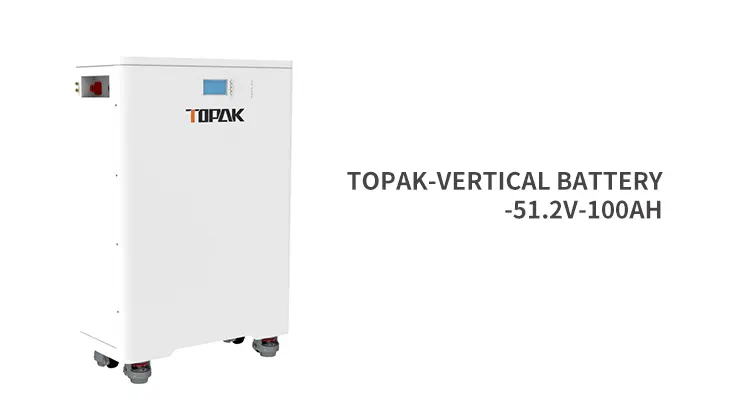

The orientation of energy storage systems significantly impacts maintenance accessibility, serviceability, and long-term operational efficiency, making the comparison between vertical and horizontal configurations a critical consideration for system designers and facility operators. When evaluating TOPAKpowertech.com/vertical-battery/51-2v-100ah-vertical-battery">51.2V 100Ah Vertical Battery systems against their horizontal counterparts, multiple factors influence serviceability including component accessibility, thermal management, space utilization, and maintenance workflow efficiency. The TP-48100V 51.2V 100Ah vertical battery with its compact 550×420×230mm dimensions and 90kg weight presents unique serviceability characteristics that differ substantially from horizontal installations. Understanding these differences helps facility managers, technicians, and system integrators make informed decisions about battery orientation that optimize both performance and maintenance efficiency throughout the system's >6000 cycle operational life.
What Maintenance Advantages Do 51.2V 100Ah Vertical Batteries Offer Over Horizontal Configurations?
Enhanced Component Accessibility and Service Access
The vertical orientation of a 51.2V 100Ah vertical battery provides superior accessibility to critical components compared to horizontal configurations, particularly in densely packed energy storage installations. The TP-48100V 51.2V 100Ah vertical battery design positions key service points, including communication interfaces for CAN/RS485 protocols and optional Bluetooth or 4G modules, at easily accessible heights that reduce strain on maintenance personnel. Unlike horizontal batteries that may require technicians to work in cramped spaces or reach over adjacent equipment, the 51.2V 100Ah vertical battery configuration enables straightforward access to connection points, diagnostic interfaces, and monitoring systems. The 16S1P module configuration in vertical orientation allows for systematic inspection and maintenance of individual cell groups without requiring extensive disassembly or repositioning of adjacent equipment, significantly reducing maintenance time and complexity.
Improved Ventilation and Thermal Management Benefits
Vertical installation of a 51.2V 100Ah vertical battery enhances natural convection cooling and thermal management compared to horizontal configurations, resulting in improved serviceability through reduced thermal stress on components. The vertical orientation promotes optimal airflow patterns around the battery system, with heated air naturally rising and being replaced by cooler air from below, creating more effective thermal management than horizontal installations that may experience hot spot formation. The 51.2V 100Ah vertical battery benefits from this natural convection effect, which helps maintain optimal operating temperatures throughout the 5.12kWh energy storage system and reduces thermal-related maintenance issues. The improved thermal performance extends component life, reduces the frequency of temperature-related service calls, and maintains consistent performance characteristics throughout the battery's operational life, ultimately resulting in lower maintenance requirements and improved system reliability.
Streamlined Inspection and Diagnostic Procedures
The 51.2V 100Ah vertical battery orientation facilitates more efficient inspection and diagnostic procedures through improved visual access to status indicators, connection points, and system components. Maintenance technicians can easily observe LED status indicators, display screens, and diagnostic interfaces without contorting into awkward positions required with some horizontal battery installations. The vertical configuration of the TP-48100V 51.2V 100Ah vertical battery enables systematic visual inspection protocols that can be performed quickly and thoroughly, identifying potential issues before they develop into major problems. The integrated smart BMS system in the 51.2V 100Ah vertical battery provides enhanced diagnostic capabilities through easily accessible communication ports, enabling rapid troubleshooting and system health assessment that reduces diagnostic time and improves maintenance efficiency.
How Does Space Utilization Affect Service Requirements for 51.2V 100Ah Vertical Batteries?
Optimized Floor Space and Maintenance Clearances
The compact vertical footprint of a 51.2V 100Ah vertical battery optimizes floor space utilization while maintaining adequate clearances for maintenance activities, a significant advantage over horizontal configurations that consume more floor area. The TP-48100V 51.2V 100Ah vertical battery's dimensions enable efficient rack mounting or standalone installation that preserves valuable floor space for maintenance access corridors and service equipment. This space optimization becomes particularly important in facilities where multiple battery units are installed, as the 51.2V 100Ah vertical battery configuration allows for higher energy density installations while maintaining code-required maintenance clearances. The vertical orientation enables maintenance personnel to access equipment from predetermined service aisles without requiring additional space allocation for horizontal battery servicing, resulting in more efficient facility layouts and improved maintenance workflow organization.
Scalability and Modular Service Advantages
The scalable design of 51.2V 100Ah vertical battery systems, with support for up to 10 parallel connections, provides modular service advantages that horizontal configurations may not offer as effectively. Each TP-48100V 51.2V 100Ah vertical battery unit can be serviced independently without affecting adjacent modules, enabling selective maintenance and replacement procedures that minimize system downtime. The vertical configuration facilitates systematic expansion and service procedures, where individual 51.2V 100Ah vertical battery units can be added, removed, or serviced without disrupting the entire energy storage array. This modularity extends to diagnostic procedures, where the CAN/RS485 communication capabilities enable individual unit monitoring and troubleshooting within larger parallel configurations, allowing technicians to isolate and address issues with specific 51.2V 100Ah vertical battery modules while maintaining system operation with remaining units.
Installation Flexibility and Service Infrastructure
The 51.2V 100Ah vertical battery configuration offers superior installation flexibility that directly impacts long-term serviceability and maintenance requirements compared to horizontal installations. The vertical orientation enables installation in locations with limited ceiling height but adequate floor-to-ceiling space, providing more options for positioning equipment in optimal service locations. The TP-48100V 51.2V 100Ah vertical battery can be positioned to take advantage of existing service infrastructure, including overhead cable management systems, ventilation equipment, and maintenance platforms that may not be compatible with horizontal configurations. This installation flexibility extends to retrofit applications where the 51.2V 100Ah vertical battery can be integrated into existing facilities without major infrastructure modifications, reducing installation costs and complexity while maintaining excellent serviceability characteristics.
What Long-Term Service Benefits Do 51.2V 100Ah Vertical Batteries Provide?
Extended Equipment Life Through Superior Maintenance Access
The enhanced serviceability of 51.2V 100Ah vertical battery systems directly contributes to extended equipment life through improved maintenance practices and component care throughout the system's operational life. The accessible design of the TP-48100V 51.2V 100Ah vertical battery enables more frequent and thorough preventive maintenance procedures, including connection inspections, thermal imaging surveys, and performance assessments that help identify potential issues before they impact system reliability. The >6000 cycle life expectancy of the 51.2V 100Ah vertical battery benefits from consistent maintenance practices enabled by the superior accessibility of vertical configurations, where routine service procedures can be performed efficiently and thoroughly. Regular maintenance facilitated by the vertical orientation helps maintain optimal performance characteristics throughout the battery's life, ensuring that the 5.12kWh energy capacity and 50A recommended discharge current remain consistent over time.
Reduced Maintenance Costs and Service Complexity
The serviceability advantages of 51.2V 100Ah vertical battery systems translate directly into reduced maintenance costs and simplified service procedures compared to horizontal configurations. Maintenance personnel can complete routine service tasks more quickly and with less physical strain when working with vertical battery installations, reducing labor costs and improving technician safety. The TP-48100V 51.2V 100Ah vertical battery design minimizes the need for specialized service equipment, lifting devices, or awkward positioning tools that may be required for horizontal battery maintenance, resulting in lower overall maintenance costs. The integrated communication capabilities and diagnostic features of the 51.2V 100Ah vertical battery enable remote monitoring and predictive maintenance strategies that further reduce service requirements and associated costs while improving system reliability and performance consistency.
Future-Proofing and Technology Upgrade Considerations
The 51.2V 100Ah vertical battery configuration provides superior future-proofing advantages for technology upgrades and system modifications compared to horizontal installations that may be more difficult to modify or expand. The modular design and accessible service points of the TP-48100V 51.2V 100Ah vertical battery facilitate integration of new monitoring technologies, communication upgrades, and performance enhancement features without major system reconfiguration. Optional modules such as Bluetooth and 4G connectivity can be added or upgraded more easily in vertical configurations, where service technicians have better access to communication interfaces and connection points. The 51.2V 100Ah vertical battery design accommodates evolving maintenance technologies and diagnostic tools, ensuring that service procedures can adapt to new equipment and techniques while maintaining the serviceability advantages inherent in the vertical orientation throughout the system's operational life.
Conclusion
51.2V 100Ah vertical batteries demonstrate clear serviceability advantages over horizontal configurations through enhanced component accessibility, improved thermal management, optimized space utilization, and reduced maintenance complexity. The vertical orientation facilitates efficient service procedures, extends equipment life, and provides superior long-term value through simplified maintenance requirements and future upgrade flexibility.
TOPAK POWER TECHNOLOGY CO.,LTD, established in 2007, delivers superior 51.2V 100Ah vertical battery solutions across 15+ countries with comprehensive service support and expertise. Our in-house developed BMS technology and automated production ensure reliable performance with enhanced serviceability features. Experience the maintenance advantages of vertical battery design – contact our team at B2B@topakpower.com to discover how our TP-48100V systems deliver superior serviceability and long-term reliability.
FAQ
Q: What makes vertical batteries easier to service than horizontal ones?
A: Vertical orientation provides better component accessibility, improved ventilation, and easier inspection procedures for maintenance personnel.
Q: Do vertical batteries require less maintenance space?
A: Yes, the compact footprint preserves floor space while maintaining adequate clearances for maintenance activities and service access.
Q: Can individual vertical battery units be serviced independently?
A: Absolutely, the modular design allows selective maintenance of individual units without affecting the entire system operation.
Q: How does vertical orientation affect battery cooling and maintenance?
A: Vertical installation enhances natural convection cooling, reducing thermal stress and temperature-related maintenance requirements.
