16kwh Vertical Battery
TOPAK New Energy Technology CO.,LTD: Your Trusted16kwh Vertical Battery Manufacturer
TOPAK New Energy Technology CO.,LTD is a leading manufacturer and supplier of high-quality 16kwh Vertical Battery . Our advanced batteries offer superior performance, long cycle life, and compact vertical design. With TOPAK's products, you'll benefit from cutting-edge technology, customizable features, and unmatched reliability for your energy storage needs.
Product Description

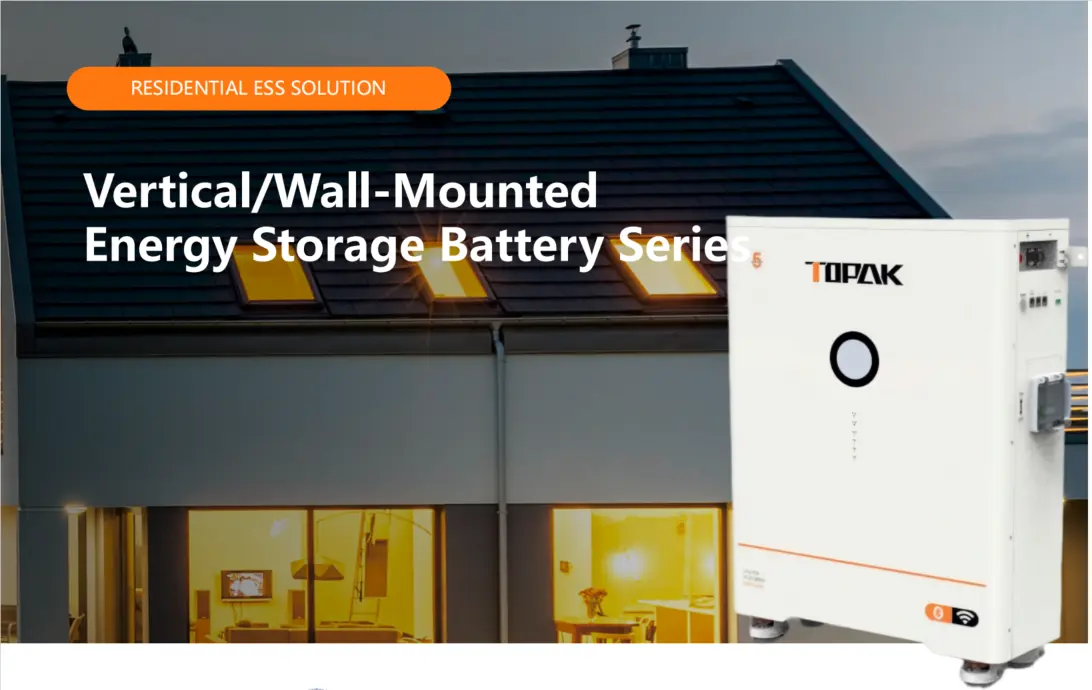

The TP-48314V 16kwh Vertical Battery is a powerhouse of innovation designed to meet the demanding requirements of modern energy storage applications. This versatile battery combines high capacity, compact design, and advanced safety features to deliver exceptional performance across various industries.
Advantages
FLEXIBLE INVESTMENT
5kWh/10kWh modular design, scalable from 5 to 240 kWh.
Plug & Play battery interface.
BMS & Breaker two Level over current protection.
Compatible to most inverter brandson the market.
Wide operating temperature range
High charge / discharge rate supporting safety 1C fast charge/ discharge
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TP-48314V |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 314Ah |
| Nominal Energy | 116.07 kWh |
| Module Configuration | 16S1P |
| Recommended Discharge Current | 170A |
| Communication | CAN / RS485 |
| Optional Modules | Bluetooth, 4G,WIFI |
| Dimensions (WxDxH) | 550 x 420 x 720 mm |
| Weight | Approx. 200 kg |
| Certifications | IEC62619, UN38.3, MSDS |
Product Highlights
Advanced LiFePO4 chemistry for enhanced safety and performance
Integrated BMS for optimal battery management and protection
Parallel connection capability for up to 15 units
User-friendly interface with multiple communication options
Compact vertical design for efficient space utilization
Application Scenarios
Renewable energy integration (solar and wind power systems)
Telecom base stations and data centers
Industrial UPS and backup power
Electric vehicle charging stations
Off-grid and microgrid solutions
Smart home energy management
Solutions
TOPAK provides comprehensive energy storage solutions, integrating our products with advanced power management systems. We offer scalable configurations to suit projects of any size, from residential installations to large-scale industrial applications.

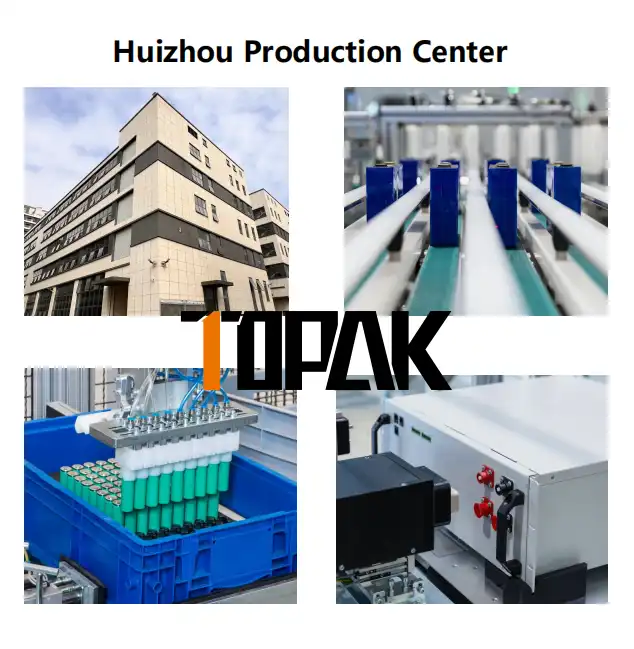

TOPAK Factory Production Process
Our state-of-the-art production facility employs over 100 advanced machines, including automatic cell matching equipment and laser welding systems. We follow a rigorous quality control process, from raw material inspection to final product testing. Each products undergoes multiple checks to ensure performance, safety, and reliability before shipping.
Why Choose TOPAK?
Industry-leading R&D capabilities with 83 patents
Comprehensive production system and quality control
Global presence with branches in key markets
Customizable solutions to meet specific needs
Proven track record in large-scale energy projects
FAQ
Q1: What is the warranty on the products?
A1: We offer a standard 5-year warranty, with extended options available for specific projects.
Q2: Can these batteries be used in extreme temperatures?
A2: Yes, our batteries are designed to operate in a wide temperature range from -20°C to 55°C.
Q3: How long does it take to fully charge the battery?
A3: Charging time depends on the charger capacity, but typically takes 2-3 hours with a recommended charger.
Q4: Are these batteries compatible with existing solar inverters?
A4: Yes, our batteries are compatible with most major inverter brands. We can provide a compatibility list upon request.
Q5: What safety features are included in the battery management system?
A5: Our BMS includes overcharge protection, deep discharge protection, short circuit protection, and temperature management.
Q6: Can I monitor the battery performance remotely?
A6: Yes, with optional Bluetooth or 4G modules, you can monitor battery status and performance remotely through our mobile app.
