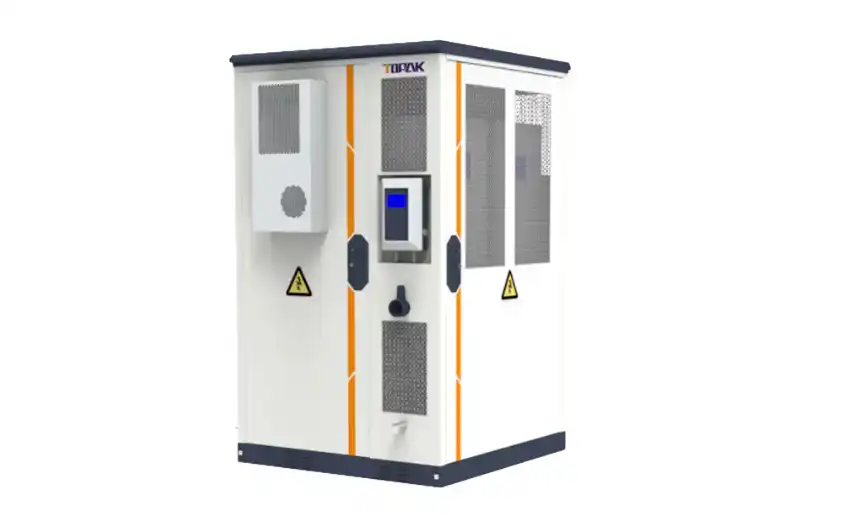

Powerful Inverter Output
Delivers 100KW of AC output with a 400VAC rating, ensuring stable power supply to industrial and commercial loads. The system is designed to operate efficiently with 50/60Hz frequency, providing a reliable power source for various applications.
Photovoltaic (PV) Integration
Supports up to 110KW of solar input, ensuring high energy generation from solar systems. The system has a photovoltaic voltage range of 200-650V, making it compatible with a variety of PV modules for seamless solar integration.
Flexible Battery Configuration
The system uses a 20S1P battery module configuration with 280Ah capacity, resulting in a flexible and scalable design. It supports both high power demand and long-lasting storage for critical applications.
Scalable Design for Future Growth
The modular design allows businesses to expand the system as energy needs grow. Multiple configurations (up to 240S1P-768V280Ah) provide the flexibility to scale up to meet increased demand.
Advanced Communication
The system features RS485, TCP, and WIFI communication methods, providing remote monitoring, control, and integration with energy management systems. Real-time data access allows for better decision-making and system optimization.

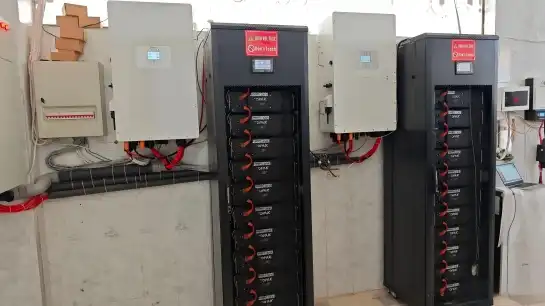

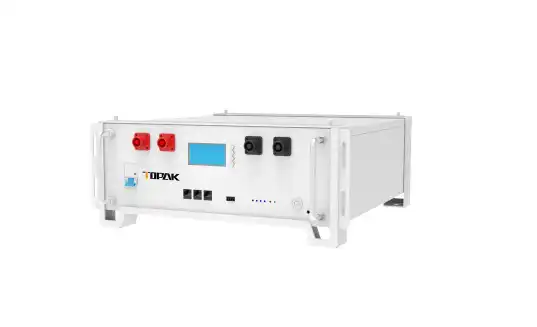

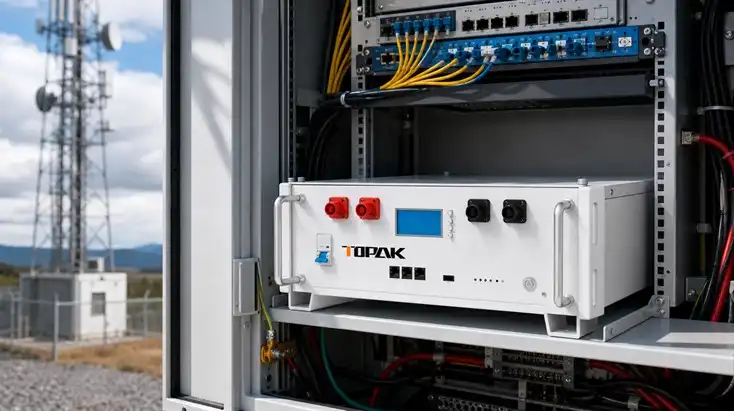

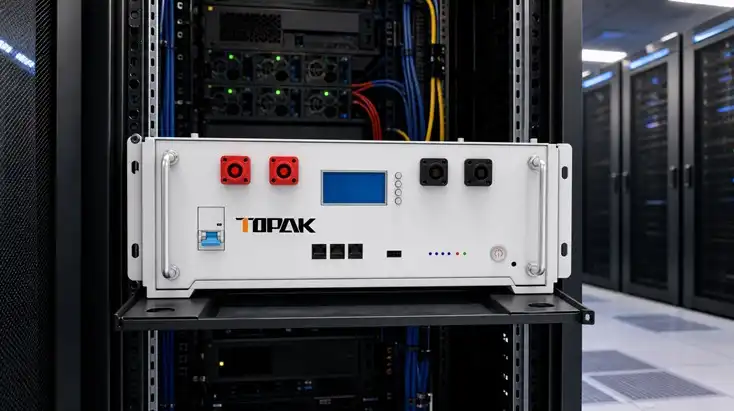

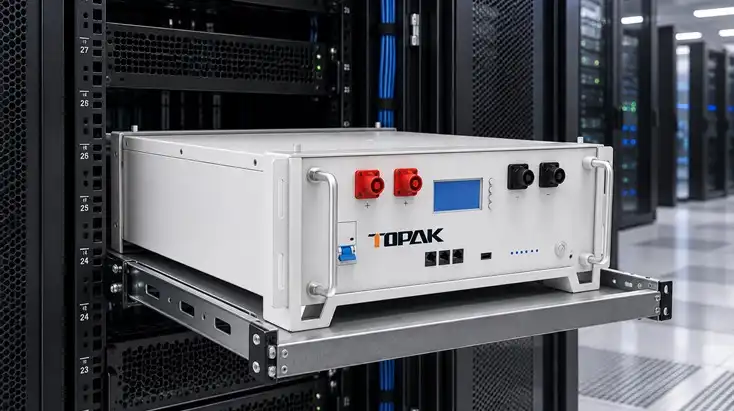

Model: TP-48100R 51.2V 100Ah Rack Mount Energy Storage Battery
Module: 16S1P
Number of parallel machines: 15PCS
Nominal voltage: 51.2V
Nominal Capacity: 100Ah
Max Continuous Discharge: 100A
Max charging current: 100A
Cycle Life: 6000 cycles @ 80% DOD
Communication mode: CAN/RS485
Optional modules: Bluetooth, 4G module
Product size: 430*442*177mm
System weight: Approx 48kg
Certificates: IEC62619/UN38.3/MSDS
Backup power for telecom base stations, Uninterruptible power supply (UPS) for data centers, Industrial equipment power backup

Model: 12.8V 20Ah LiFePO4 Battery

Nominal Voltage: 12.8V
Capacity: 20Ah
Energy: 256Wh
Max Continuous Discharge: 30A
Built-in BMS: Yes (Over-voltage, over-current, short circuit, temperature protection)
Battery Type: LiFePO4 (Lithium Iron Phosphate)
Cycle Life: 6000 cycles @ 80% DOD
Weight: Approx. 2.5kg
Dimensions: Optimized for mobility applications
Certificates: CE, MSDS, UN38.3
Perfect for electric scooters, wheelchairs, portable medical devices, and small UPS systems.
